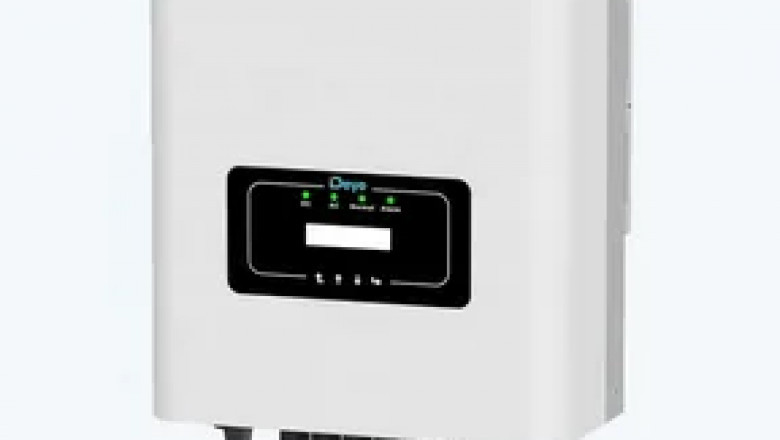

Before jumping into the installation process, it's essential to fully understand what a 3KW 24V Hybrid Solar Inverter is and how it works. A hybrid inverter is designed to work with both solar panels and battery storage systems, efficiently managing energy from multiple sources and switching between them based on demand and availability. The 3KW capacity means the inverter can handle loads up to 3 kilowatts, while the 24V rating refers to the battery voltage it supports. It typically combines functionalities of a solar charge controller, inverter, and battery management system in one unit, making it ideal for homes and small businesses aiming for energy independence.
Knowing the capabilities and limitations of your 3KW 24V Hybrid Solar Inverter is key to a safe and efficient setup. It’s important to review the product manual thoroughly, especially the technical specifications and compatibility guidelines. Understanding how the inverter interacts with your solar panels, batteries, and grid connection can prevent improper configurations that may lead to poor performance or damage. Consider whether your existing or planned solar array and battery bank are properly sized and compatible with a 24V system. Planning out your installation in accordance with these specifications will save time, reduce costs, and improve the longevity of your system.
Choosing the Right Location for Installation
The location where you install your 3KW 24V Hybrid Solar Inverter plays a critical role in its performance and lifespan. It should be mounted in a dry, well-ventilated area away from direct sunlight, rain, or high humidity. Excessive heat or moisture can degrade electronic components and lead to system failures. Typically, a shaded wall inside a utility room, garage, or dedicated inverter box offers the best protection. Be sure to install it at a height that allows for easy access and maintenance, ideally at eye level, but always in line with local electrical codes and safety regulations.
Ventilation is crucial to avoid overheating. Your 3KW 24V Hybrid Solar Inverter will generate heat during operation, especially when working at high loads. Good airflow around the inverter helps dissipate this heat and keeps the system running efficiently. Ensure there’s at least 12 inches (30 cm) of clearance on all sides, especially near the cooling vents and fans. Avoid placing the inverter near flammable materials or heat sources. Additionally, make sure it’s easily accessible for monitoring, servicing, or future upgrades, as this reduces long-term maintenance challenges and downtime.
Wiring and Electrical Configuration: Safety First
Proper wiring is one of the most critical aspects of installing a 3KW 24V Hybrid Solar Inverter. Before making any connections, disconnect all power sources and use insulated tools to minimize the risk of electric shock. Start by connecting the inverter to the battery bank using appropriately sized cables, considering the 24V configuration and the current it will draw. Using undersized cables may cause voltage drops, overheating, or even fire hazards. It's recommended to use double-insulated DC cables, and ensure positive and negative terminals are clearly marked and correctly connected to avoid polarity issues.
When integrating the solar panels, be sure their output matches the input voltage range of the inverter’s charge controller. Most 3KW 24V Hybrid Solar Inverters include an MPPT (Maximum Power Point Tracking) controller to optimize solar charging. Panels can be wired in series, parallel, or a combination depending on the voltage and current needed. Always install proper fuses and circuit breakers on the solar, battery, and AC lines to provide protection in case of overload or short circuits. Finally, make sure your grounding is solid to protect both the system and its users from electrical faults and lightning strikes.
Integrating with the Grid and Backup Batteries
One of the key advantages of a 3KW 24V Hybrid Solar Inverter is its ability to function in both on-grid and off-grid modes, allowing you to seamlessly switch between solar, battery, and utility power. If you plan to integrate your system with the utility grid, ensure your inverter model is certified for grid compliance in your region. You’ll also need a bidirectional energy meter and approval from your utility provider. During the installation, connect the AC output of the inverter to your home’s distribution panel through a transfer switch to safely manage the flow of power between the inverter and the grid.
When setting up the backup batteries, make sure you use deep-cycle batteries designed for solar energy storage, such as lithium-ion or AGM types. Since your inverter supports a 24V system, you may need to connect two 12V batteries in series to match the voltage requirement. Batteries should be housed in a well-ventilated, temperature-controlled area to maintain performance and safety. Use a battery management system (BMS) or select an inverter with built-in BMS support to ensure the batteries are charged and discharged within safe limits. Always follow the manufacturer’s wiring diagram and safety instructions to avoid any hazards during grid outages or power fluctuations.
Testing, Configuration, and Maintenance Best Practices
Once all components are connected, it’s time to configure and test your 3KW 24V Hybrid Solar Inverter. Begin by powering up the inverter and checking for any warning or error indicators. Use the inverter’s display screen or companion mobile app (if available) to set up charging preferences, voltage cut-off points, and usage priorities (e.g., solar first, then battery, then grid). Perform a full load test by running household appliances to ensure that the inverter handles the demand without overheating or shutting down. Monitor solar input, battery charging status, and grid interaction to ensure everything is functioning properly.
Regular maintenance will extend the lifespan of your 3KW 24V Hybrid Solar Inverter and keep it running at peak efficiency. Dust and debris can accumulate on vents and cooling fans, so clean them regularly. Check all electrical connections every few months to ensure there are no loose terminals or signs of corrosion. Software updates provided by the manufacturer can enhance performance and fix known issues—install them when available. Keep a log of system performance and maintenance activities to track trends and catch any anomalies early. By staying proactive, you can ensure your solar inverter system continues to deliver reliable and efficient energy for years to come.
Conclusion
Installing a 3KW 24V Hybrid Solar Inverter requires careful planning, precise wiring, and strict adherence to safety protocols. By thoroughly understanding your inverter's specifications and choosing the right location, you set the foundation for a reliable solar energy system. Proper electrical configuration and compatibility with solar panels, batteries, and the grid are essential to get the most out of your hybrid inverter.
Once installation is complete, consistent monitoring and maintenance will ensure long-term performance. Whether you're reducing energy costs or preparing for power outages, a properly installed hybrid inverter system offers peace of mind and energy independence. Investing time in learning about your 3KW 24V Hybrid Solar Inverter and following these installation tips will yield a smart, efficient, and future-ready solar setup.
